Carving Machine

1985 Kurt-Northstar Mastercarver Carving Machine.

This six spindle machine can make up to 6 copies at a time of work up to 10 inches wide and 36 inches long.

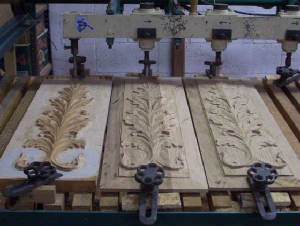

Here the machine is set up with tables for doing flat relief work.

Here the machine is set up to carve 360 degrees.

The work is held between centers with linked rotation.

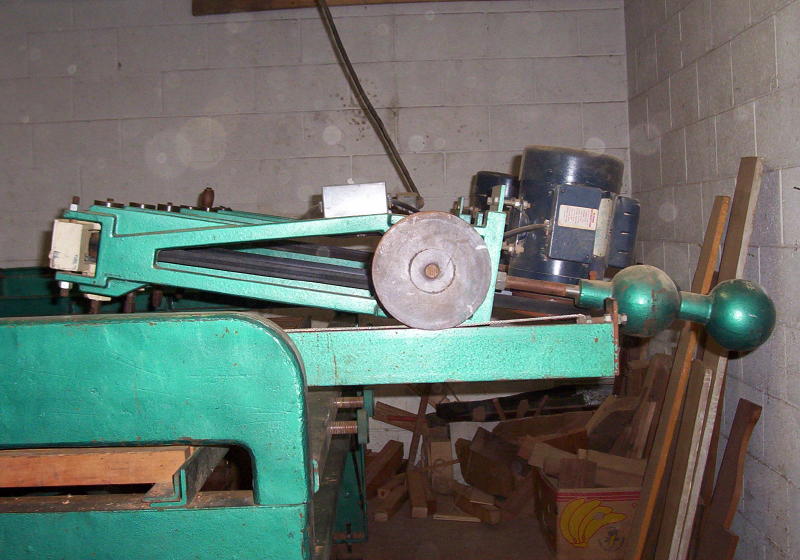

This machine has two 1hp motors, each driving 3 spindles via flat belt.

The machine needs an original carving called a model to make the duplicates.

finney, Here's some pictures of my first machine an actual "dupli-carver". This is the cheapest machine you can get about $625. we could build one better than this, but probably not for cheaper. I bought mine for $50, made a bunch of mods to make it work and sold it for $200 when I got the big one.

skull
